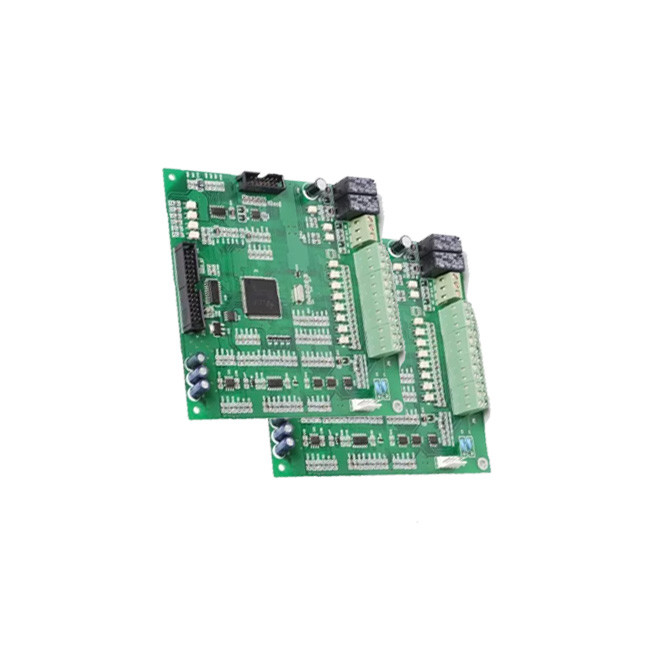

Buried Blind Hole PCB Panel Design Thru Hole Assembly Simple Pcb Layout Design

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100000pc/Month

Delivery Time : 4 Weeks

Packaging Details : PCB + Box

Brand Name : CUSTOM MADE

Certification : ISO/UL

Keyword : PCB Board Design

Features : Producibility, Testability, Assemblability, Maintainability

PCB Boards : Blind-Hole Boards, Thick Copper And Aluminum Boards

Applications : Consumer Electronics, PCBA Circuit Board

Surface Finished : HASL Pb Free Immersion Gold/Tin/Silver Osp

Materials : Rogers, Nelco, PTFE, TU862, TU872

SMT Capability : 14 million spots per day

Support multiple PCBs : Multi-Layer, Rigid Flexible, High-Frequency

Payment Method : T/T

Whether to Support customization : Support

Logistics : Accept customer specified logistics

Contact Now

Gold Finger Plating Buried Blind Hole PCB Board Design Thru-Hole Assembly

Prototype PCB Assembly Description:

1. Focus on high-speed and high-density PCB design.
2. Industry-leading SI/PI simulation.
3. Many years of experience.

Prototype PCB Assembly Parameters:

Item Technical Parameter
Layer 2-64
Thickness 0.3-6.5mm
Copper Thickness 0.3-12 oz
Min Mechanical Hole 0.1mm
Min Laser Hole 0.075mm
HDI 1+n+1,2+n+2,3+n+3
Max Aspect Ratio 20:01
Max Board Size 650mm*1130mm
Min Width/Space 2.4/2.4mil
Min Outline Tolerance ±0.1mm
Impedance Tolerance ±5%
Min PP Thickness 0.06mm
Bow &Twist ≤0.5%
Materials FR4, High-Tg FR4, Rogers, Nelco, RCC, PTFE, M4, M6, TU862, TU872
Surface Finished HASL, HASL Pb Free Immersion Gold/Tin/Silver Osp, Immersion Gold+OSP
Special Capability Gold Finger Plating, Peelable, Carbon ink

Prototype PCB Assembly Introduction:

1. Testability
A relatively complete test method and test standard have been established, and the qualification and service life of PCB products can be detected and identified through various test equipment and instruments.
2. Assemblability
PCB products not only facilitate the standardized assembly of various components but also enable automated and large-scale mass production. In addition, the overall assembly of the PCB and various other components can also form larger components, systems, and even complete machines.
3. Maintainability
Since the components of PCB products and various components are assembled in a standardized design and large-scale production, these components are also standardized. Therefore, once the system fails, it can be replaced quickly, conveniently and flexibly, and the work of the system can be quickly restored.

Buried Blind Hole PCB Panel Design Thru Hole Assembly Simple Pcb Layout Design


Product Tags:

Buried Blind Hole PCB Panel Design
